Best Heatsinks for VRM in 2026: 11 Picks Ranked by Specs
As an Amazon Associate we earn from qualifying purchases. Links on this page are affiliate links.
Finding the best heatsinks for VRM requires matching your board’s physical constraints with the right thermal materials. We compared 11 options ranked strictly by published specifications. The top pick is the Easycargo 9mm Copper VRM Heatsinks. It leads because its 0.16-inch height fits tight spaces while copper conducts heat efficiently. These selections are based solely on the specs listed on each product page. This guide helps you decide which size, material, and thickness suit your specific motherboard layout.
Quick picks
The best fit for you
- You need compact copper heatsinks with pre-applied adhesive. Easycargo 9mm Copper VRM Heatsinks Their 9x9x4mm copper dimensions and pre-applied thermal tape fit low-clearance VRM components directly.
- You have ample clearance for tall passive cooling heatsinks. Awxlumv 40mm Anodized Aluminum Heatsink 4-Pack The 40x40x20mm aluminum profile provides substantial passive cooling area when component height is unrestricted.
- You need exact gap filling across various component clearances. Easycargo 100-Piece 15mm Copper Shim Kit This kit provides 401 W/mK copper shims across 12 distinct thicknesses for exact gap management.
- You want a wide black heatsink with pre-applied tape. Awxlumv 60x40x11mm Aluminum Heatsinks (2-Pack) The 60x40x11mm black aluminum footprint provides wide low-profile coverage with pre-applied thermal tape.
Our 11 picks
Easycargo 9mm Copper VRM Heatsinks
Best for: compact VRM and MOSFET passive cooling
- Compatible Device
- GPU, VRM (what this guide is about)
- Material
- Copper
- Cooling Method
- passive
- Dimensions
- 9mm x 9mm x 4mm
- Mounting Type
- Pre applied adhesive tape backing
- Features
- Thermal Tape
This package provides 10 copper heatsinks designed for passive cooling on VRMs, MOSFETs, and regulators. Each unit measures 9mm by 9mm with a low 4mm profile, allowing you to fit them into tight board clearances. Pre-applied thermal conductive adhesive tape speeds up installation by eliminating separate paste or thermal pads. It suits you if you need compact, direct-contact copper heatsinks for small power delivery components across motherboards or graphics cards.
Pros
- Solid copper construction for passive heat dissipation
- Pre-applied thermal conductive adhesive tape for tool-free mounting
- Low 4mm height fits restricted clearance areas
- Includes 10 matching heatsinks in one kit
Cons
- Single 9mm by 9mm footprint offers no size variation
- Adhesive tape mounting cannot be mechanically re-tightened
Good fit if
- You need low-profile copper heatsinks under 5mm in height for VRM chips.
- You prefer pre-applied thermal adhesive tape instead of loose paste or thermal pads.
- You want 10 identical 9mm by 9mm heatsinks for uniform component layouts.
Skip if
- You need mixed sizes or larger surface areas for oversized power stages.
- You prefer mechanical mounting like push-pins or screws over adhesive tape.
Verdict: Easycargo 9mm Copper VRM Heatsinks deliver compact passive cooling with copper construction and pre-applied adhesive for straightforward installation on power components. They are a practical, direct fit when your layout demands uniform 9mm heatsinks with low vertical clearance.
Awxlumv 40mm Anodized Aluminum Heatsink 4-Pack
Best for: spacious VRM layouts needing tall passive heatsinks
- Compatible Device
- VRM, 3D Printer (what this guide is about)
- Material
- Anodized aluminum
- Cooling Method
- passive cooling
- Dimensions
- 40 x 40 x 20mm
- Weight
- 1.45 ounces
View on Amazon: Awxlumv 40mm Anodized Aluminum Heatsink 4-Pack
This package provides four passive anodized aluminum heatsinks designed to cool electronic components such as VRMs and IC chips. Each unit measures 40 by 40 by 20 millimeters and weighs 1.45 ounces, featuring cooling fins for heat dissipation. You will need to source your own thermal adhesive, as none comes in the box. This set suits you if you need large individual heatsinks for spacious board layouts.
Pros
- Large 40 x 40 x 20 mm profile provides substantial cooling surface
- Anodized aluminum construction with integrated cooling fins
- Includes four heatsinks per pack
- Weighs 1.45 oz (41 g) per unit for solid thermal mass
Cons
- Thermal conductive adhesive paste is not included
- 20 mm height requires considerable vertical clearance
Good fit if
- You have at least 20 mm of vertical clearance around your VRM components.
- You already have thermal conductive tape or adhesive paste ready to apply.
- You prefer large 40 x 40 mm cooling blocks instead of smaller modular shims.
Skip if
- You need pre-applied thermal tape included in the package.
- You are working with low-profile enclosures that cannot fit 20 mm tall fins.
Verdict: Awxlumv 40x40x20mm Aluminum Heatsinks provide substantial passive cooling area for components with ample clearance, provided you supply your own thermal adhesive.
Easycargo 100-Piece 15mm Copper Shim Kit
Best for: fine-tuning VRM thermal gap clearances
- Compatible Device
- GPU, Laptop, RAM, PS5, M.2 SSD, VRM (what this guide is about)
- Material
- Copper C1100
- Length
- 0.6 inches
- Width
- 0.6 inches
This kit provides 100 pure C1100 copper shims designed to bridge thermal gaps across components like VRMs. Each shim measures 15mm by 15mm and offers a thermal conductivity rating of 401 W/mK. With 12 different thicknesses ranging from 0.1mm to 2mm, you get exact sizing flexibility for uneven surfaces. It suits you if you need precise metallic gap fillers to replace thermal pads across power delivery circuitry.
Pros
- High thermal conductivity rated at 401 W/mK
- 12 thicknesses included, ranging from 0.1mm to 2mm
- Pure C1100 copper construction
- Generous 100-piece assortment
Cons
- Flat shim design lacks cooling fins for convective airflow
- Fixed 15mm by 15mm base may not cover oblong VRM components
- Only three pieces provided for the 2mm thickness
Good fit if
- You need high-conductivity C1100 copper shims to fill precise component gaps.
- You require a wide selection of thicknesses from 0.1mm to 2mm.
- You are cooling square 15mm by 15mm power delivery areas.
Skip if
- You need finned heatsinks designed for passive air convection.
- You need shims larger or smaller than the fixed 15mm by 15mm footprint.
Verdict: Easycargo 15mm Copper Pad Shim Kit delivers 401 W/mK heat transfer across 12 distinct thicknesses for exact gap management. It serves as a durable, highly conductive copper interface for VRM components requiring specific low-profile clearance.
Easycargo 20mm Copper Pad Shim Kit
Best for: Precise gap filling across variable VRM clearances
- Compatible Device
- GPU, RAM, PS5, VRM (what this guide is about)
- Material
- Pure Copper C1100
- Dimensions
- 20mm x 20mm
- Weight
- 4.66 ounces
This kit provides 40 low-profile C1100 pure copper shims measuring 20mm by 20mm. You get six different thicknesses spanning 0.3mm to 1.5mm, allowing exact gap filling across varied VRM heights. With a rated thermal conductivity of 401W/mK, these shims efficiently transfer heat away from VRMs, GPUs, and IC chips. It suits you if you need multiple copper spacer sizes to bridge clearances between heat sinks and power delivery components.
Pros
- High thermal conductivity rated at 401W/mK
- Pure C1100 copper construction
- Includes 40 shims across 6 thicknesses from 0.3mm to 1.5mm
- Standard 20mm x 20mm square profile
Cons
- Lacks pre-applied thermal adhesive or thermal tape
- Fixed 20mm x 20mm surface area with no other footprint sizes
- Flat shim design lacks integrated cooling fins
Good fit if
- You need to bridge specific gap heights between 0.3mm and 1.5mm on VRM components.
- You require high 401W/mK conductivity pure copper shims.
- You have space to fit a 20mm x 20mm flat pad.
Skip if
- You need pre-applied adhesive tape included in the package.
- You require tall heatsinks with fins rather than flat gap-filling shims.
- You need smaller footprint shims for tight components under 20mm wide.
Verdict: Easycargo 20mm Copper Pad Shim Kit provides pure copper gap-filling options across six distinct thicknesses with 401W/mK thermal conductivity. It is an effective solution when you need precise clearance matching on 20mm x 20mm VRM areas.
Easycargo 10mm Copper VRM Heatsink Kit
Best for: compact 10mm square VRM power stages
- Compatible Device
- VRM (what this guide is about)
- Material
- Copper
- Dimensions
- 10mm x 10mm x 4mm
- Mounting Type
- Pre-applied adhesive tape
- Features
- Thermal Tape
- Weight
- 0.39 ounces
This kit provides 10 pure copper heatsinks designed for VRMs and IC chips. Each block measures 10mm by 10mm by 4mm and weighs 2 grams, offering high thermal conductivity in a compact form factor. They arrive with pre-applied 3M 8810 thermal conductive adhesive tape on the base for tool-free mounting. You will find them ideal if you need low-profile cooling for individual voltage regulator modules in tight clearances.
Pros
- Pure copper construction for high thermal conductivity
- Pre-applied 3M 8810 thermal conductive adhesive tape backing
- Low 4mm height fits restricted clearance zones
- Kit includes 10 matching heatsinks
Cons
- Fixed 10mm by 10mm footprint does not fit rectangular components
- Pre-applied tape precludes using mechanical mounting clips or screws
Good fit if
- You need copper cooling blocks with a 10mm by 10mm footprint.
- You have only 4mm of vertical height available above your VRM components.
- You want pre-applied thermal adhesive tape for quick installation.
Skip if
- You need to cover larger or non-square surface areas.
- You require more than 10 individual heatsinks for your build.
Verdict: Easycargo 10mm Copper VRM Heatsinks offer solid copper construction and pre-applied thermal tape for small electronic components. They provide a direct, low-profile cooling solution when vertical clearance is capped at 4mm.
GeeekPi 102-Piece Aluminum and Copper Heatsink Kit
Best for: multi-size VRM and small IC cooling projects
- Compatible Device
- GPU, Laptop, RAM, VRM, Raspberry Pi (what this guide is about)
- Material
- Aluminum, Copper
- Mounting Type
- Thermal conductive adhesive tape
- Dimensions
- 1.57 × 1.57 × 0.43 inches
- Weight
- 7.83 ounces
View on Amazon: GeeekPi 102-Piece Aluminum and Copper Heatsink Kit
This 102-piece heatsink assortment combines 92 aluminum and 10 copper heatsinks divided into 17 categories. It mounts using thermal conductive adhesive tape to cool VRM components, VRAM, and small ICs across your electronics. The kit includes a dedicated storage box to organize the multicolor parts. It suits you if you need a versatile supply of mixed-material coolers for varying component layouts.
Pros
- Includes 102 heatsinks divided across 17 categories
- Provides both aluminum (92 pieces) and copper (10 pieces) options
- Uses thermal conductive adhesive tape for tool-free mounting
- Comes with a compartmentalized storage box
Cons
- Only 10 of the 102 included heatsinks are copper
- Adhesive tape mounting lacks mechanical retention hardware
Good fit if
- You need a wide assortment of 17 heatsink sizes for different VRM footprints.
- You prefer peel-and-stick adhesive tape over screw or clip installations.
Skip if
- You need an all-copper heatsink configuration for every component.
- You require mechanical mounting brackets, push-pins, or screws.
Verdict: GeeekPi 102-Piece Aluminum and Copper Heatsink Kit provides an organized 17-category assortment of adhesive-backed coolers for varied VRM setups. It delivers strong component variety across 92 aluminum and 10 copper profiles.
Easycargo 6mm Copper Heatsink 10-Pack
Best for: compact VRM chips needing 6mm square cooling
- Compatible Device
- GPU, VRM (what this guide is about)
- Material
- Copper
- Cooling Method
- Passive
- Dimensions
- 6mm x 6mm x 5mm
- Mounting Type
- Pre-applied 3M 8810 adhesive tape
- Features
- Thermal Tape
The Easycargo 6x6x5mm Copper Heatsink 10-Pack gives you ten miniature passive copper coolers designed for compact electrical components. Each unit measures 6mm by 6mm with a 5mm height, making them suitable for crowded boards. They feature pre-applied 3M 8810 thermal conductive adhesive tape backing for direct mounting onto surfaces. If you need targeted passive cooling on small VRM chips, MOSFETs, or regulators with minimal surface area, this kit fits your hardware setup.
Pros
- Solid copper construction for passive heat dissipation
- Pre-applied 3M 8810 thermal conductive adhesive tape
- Compact 6mm x 6mm footprint fits tight component spaces
- Includes 10 heatsinks in the package
Cons
- Fixed 5mm height requires vertical clearance above components
- Single size only with no alternative dimensions included
Good fit if
- You need small 6mm by 6mm copper coolers for individual VRM chips or MOSFETs.
- You want pre-applied 3M 8810 adhesive tape for direct mounting without extra paste.
- You require 10 matching heatsinks for multiple small power delivery parts.
Skip if
- You need heatsinks shorter than 5mm for extremely tight enclosures.
- You require an assortment of different heatsink footprints.
Verdict: Easycargo 6x6x5mm Copper Heatsink 10-Pack provides compact copper passive cooling with pre-applied adhesive tape for individual VRM components. It suits builds that need dedicated 6mm by 6mm coverage across multiple small power chips.
Easycargo 12mm Copper VRM Heatsink 6-Pack
Best for: compact 12mm VRM and MOSFET passive cooling
- Compatible Device
- GPU, VRM (what this guide is about)
- Material
- copper
- Cooling Method
- passive
- Dimensions
- 12 x 12 x 4 mm
- Mounting Type
- pre-applied adhesive tape
- Features
- Thermal Tape
The Easycargo 12mm Copper Heatsinks pack gives you six individual passive cooling blocks designed for hot surface components. Each block measures 12 by 12 by 4 millimeters and weighs 3.3 grams, utilizing pure copper for direct heat transfer. They feature pre-applied 3M 8810 thermal conductive adhesive tape on the base. This kit suits you if you need compact, low-profile copper cooling for VRM MOSFETs, regulators, or compact electronics.
Pros
- Solid copper construction for passive heat dissipation
- Pre-applied 3M 8810 thermal conductive adhesive tape
- Low 4 mm height fits tight clearance areas
- Lightweight design at 3.3 grams per unit
Cons
- Contains only 6 heatsinks per pack
- Fixed 12 x 12 mm footprint offers no size variation
- No mechanical mounting clips or hardware included
Good fit if
- You need 12 x 12 mm copper heatsinks for VRM chips or MOSFET regulators.
- You want pre-applied thermal adhesive tape for straightforward mounting.
- You have tight vertical clearance limited to 4 mm.
Skip if
- You need to cover more than 6 components without purchasing extra sets.
- You require mechanical mounting hardware instead of thermal adhesive tape.
Verdict: Easycargo 12mm Copper Heatsinks (6-Pack) delivers compact, copper passive cooling with pre-applied 3M 8810 tape for tight spaces. It provides a simple thermal solution for six individual VRM or MOSFET chips.

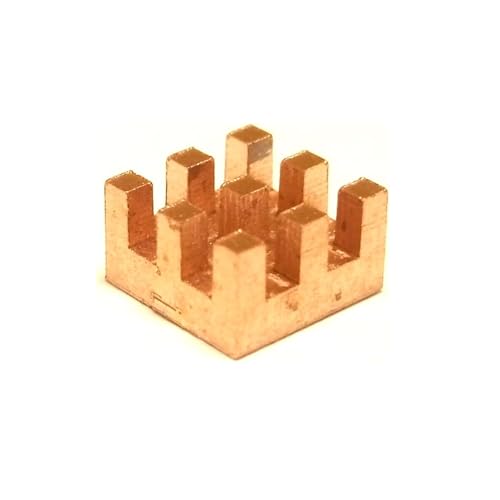

Easycargo 6x6x3mm Copper Heatsink 10-Pack
Best for: cooling tiny VRM components in tight clearances
- Compatible Device
- GPU, VRM (what this guide is about)
- Material
- copper
- Cooling Method
- passive
- Dimensions
- 6 x 6 x 3 mm
- Mounting Type
- pre-applied adhesive tape
- Features
- Thermal Tape
This set gives you ten copper heatsinks sized at 6 by 6 by 3 mm for passive cooling. The pure copper construction transfers heat away from compact VRM and MOSFET chips on crowded boards. Each unit includes pre-applied 3M 8810 thermal conductive adhesive tape for quick peel-and-stick installation. You should choose this pack if you need miniature passive cooling for small power delivery components with limited physical clearance.
Pros
- Solid copper construction for thermal transfer
- Pre-applied 3M 8810 thermal conductive adhesive tape
- Compact 6 x 6 x 3 mm footprint fits tight spaces
- Includes 10 heatsinks per pack
Cons
- Low 3 mm profile offers limited surface area
- Fixed 6 x 6 mm size with no alternate dimensions included
Good fit if
- You need miniature heatsinks for small VRM or MOSFET chips.
- You have tight clearance requiring a low 3 mm profile.
- You want pre-applied thermal tape for quick mounting.
Skip if
- You need an assortment of different heatsink sizes.
- You require large heatsinks with higher surface area.
Verdict: Easycargo 6x6x3mm Copper Heatsinks provide compact, copper-based passive thermal management for space-constrained VRM and MOSFET setups. Pre-applied adhesive ensures simple installation directly onto tiny components.
Awxlumv 60x40x11mm Aluminum Heatsinks (2-Pack)
Best for: low-profile black passive VRM cooling
- Compatible Device
- VRM (what this guide is about)
- Material
- Black anodized aluminum
- Cooling Method
- Passive
- Dimensions
- 60 x 40 x 11 mm
- Mounting Type
- Pre-coated thermal tape backing
- Weight
- 1.84 ounces
View on Amazon: Awxlumv 60x40x11mm Aluminum Heatsinks (2-Pack)
This two-pack includes passive cooling blocks made from black anodized aluminum. Each heatsink measures 60 by 40 by 11 mm and weighs 0.92 ounces. You get pre-coated thermal conductive adhesive tape on the base, eliminating separate mounting paste or hardware. These units suit you if you need low-profile, medium-footprint thermal dissipation across broader VRM power sections or electronics modules.
Pros
- Pre-coated thermal conductive adhesive tape backing for direct attachment
- Low 11 mm profile fits inside tight enclosure clearances
- Black anodized aluminum construction provides passive heat dissipation
- Includes 2 heatsinks per pack
Cons
- Only 2 pieces included, fewer than multi-piece assortment kits
- Fixed 60 x 40 mm footprint cannot cover small individual MOSFETs
Good fit if
- You need a low 11 mm vertical profile to clear nearby components.
- You want integrated thermal tape without buying separate adhesive.
- You require a wider 60 x 40 mm surface area to cover multiple components together.
Skip if
- You need small individual heatsinks for isolated individual VRM chips.
- You require copper material instead of anodized aluminum.
Verdict: Awxlumv 60x40mm Black Aluminum Heatsinks deliver pre-taped passive cooling in an 11 mm low-profile design. They give you a straightforward 60 by 40 mm aluminum solution for compact component layouts.
Easycargo 124-Piece Multi-Size Aluminum and Copper Kit
Best for: cooling assorted VRM chips with varied clearances
- Compatible Device
- GPU, Laptop, RAM, PS5, VRM, Raspberry Pi (what this guide is about)
- Material
- Aluminum and Copper
- Mounting Type
- Pre-applied 3M 8810 adhesive tape
- Features
- Thermal Tape
- Length
- 0.56 inches
- Width
- 0.56 inches
View on Amazon: Easycargo 124-Piece Multi-Size Aluminum and Copper Kit
This Easycargo kit provides 124 heatsinks across nine distinct dimensions, combining aluminum heatsinks and flat copper pad shims. For your VRM components, it includes pieces ranging from compact 9mm by 9mm footprints up to 15mm by 15mm options. Each piece features pre-applied 3M 8810 thermal conductive adhesive tape for direct mounting without extra pads. It suits you if you service irregular VRM layouts or multiple hardware boards.
Pros
- 124 total heatsinks across nine distinct sizes
- Pre-applied 3M 8810 thermal conductive adhesive tape
- Includes both finned aluminum heatsinks and 0.5mm thin copper shims
- Heights range from 0.5mm low-profile shims up to 8mm tall sinks
Cons
- Only 20 of the 124 pieces are copper
- Pre-applied tape restricts the use of dedicated thermal paste
- No push-pins or screw-mount hardware included
Good fit if
- You need assorted heatsink dimensions for mixed-size VRM MOSFETs.
- You want peel-and-stick installation with pre-applied 3M 8810 tape.
- You require ultra-thin 0.5mm copper shims alongside taller aluminum sinks.
Skip if
- You need an all-copper cooling setup for your VRM.
- You prefer screw-mounted heatsinks rather than thermal tape attachment.
Verdict: Easycargo 124-Piece Aluminum and Copper Heatsink Kit provides extensive sizing variety and peel-and-stick mounting for diverse VRM layouts. Its mix of aluminum sinks and ultra-thin copper shims covers varying clearance constraints across multiple components.
Specifications side by side
| Spec | Easycargo 9mm Copper VRM Heatsinks | Awxlumv 40mm Anodized Aluminum Heatsink 4-Pack | Easycargo 100-Piece 15mm Copper Shim Kit | Easycargo 20mm Copper Pad Shim Kit | Easycargo 10mm Copper VRM Heatsink Kit | GeeekPi 102-Piece Aluminum and Copper Heatsink Kit | Easycargo 6mm Copper Heatsink 10-Pack | Easycargo 12mm Copper VRM Heatsink 6-Pack | Easycargo 6x6x3mm Copper Heatsink 10-Pack | Awxlumv 60x40x11mm Aluminum Heatsinks (2-Pack) | Easycargo 124-Piece Multi-Size Aluminum and Copper Kit |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Copper | Anodized aluminum | Copper C1100 | Pure Copper C1100 | Copper | Aluminum, Copper | Copper | copper | copper | Black anodized aluminum | Aluminum and Copper |
| Cooling Method | passive | passive cooling | not specified | not specified | not specified | not specified | Passive | passive | passive | Passive | not specified |
| Compatible Device | VRM GPU Stepper Driver MOSFET Regulators | IC chip, NEMA17 stepper motors | PC, Laptop GPU, CPU, M.2 NVMe SSD | CPU, GPU, VGA, RAM, VRM, PS5 SSD | VRM, IC Chips | Raspberry Pi, CPU, GPU, Laptop | VRM, GPU, MOSFET, stepper driver | GPU, VRM, MOSFET, IC chips | GPU, VRM, MOSFET, IC chips | VRM, CPU, LED, stepper motors | Raspberry Pi 4, M.2 SSD, PS5 |
| Dimensions | 9mm x 9mm x 4mm | 40 x 40 x 20mm | not specified | 20mm x 20mm | 10mm x 10mm x 4mm | not specified | 6mm x 6mm x 5mm | 12 x 12 x 4 mm | 6 x 6 x 3 mm | 60 x 40 x 11 mm | not specified |
| Mounting Type | Pre applied adhesive tape backing | not specified | not specified | not specified | Pre-applied adhesive tape | Thermal conductive adhesive tape | Pre-applied 3M 8810 adhesive tape | pre-applied adhesive tape | pre-applied adhesive tape | Pre-coated thermal tape backing | Pre-applied 3M 8810 adhesive tape |
| Color | 10pcs 9x9x4mm Copper | 4Pcs | Copper | not specified | not specified | not specified | not specified | not specified | not specified | Black | not specified |
| Features | Thermal Tape | not specified | not specified | not specified | Thermal Tape | Thermal Tape | Thermal Tape | Thermal Tape | Thermal Tape | Thermal Tape | Thermal Tape |
| Weight | not specified | 1.45 ounces | not specified | 4.66 ounces | 0.39 ounces | 7.83 ounces | not specified | not specified | not specified | 1.84 ounces | 5.93 ounces |
| Length | not specified | not specified | 0.6 inches | not specified | not specified | not specified | not specified | not specified | not specified | not specified | 0.56 inches |
| Width | not specified | not specified | 0.6 inches | not specified | not specified | not specified | not specified | not specified | not specified | not specified | 0.56 inches |
| Model | ES-H12B141407 | 40x40x20mm Heatsink | ES-C100-1515 | 2020XXC40 | 101010C10-3M-8810 | not specified | 060605C10-8810 | 121204C10-8810 | 060603C10-8810 | 60x40x11mm | 124-HK |
| Size | not specified | 40*40*20mm | not specified | not specified | 10mmx10mmx4mm | not specified | not specified | not specified | not specified | not specified | not specified |
You can also check the best nvme SSDs with heatsink page for more storage cooling options.
How to Choose VRM Heatsinks
-
Check Vertical Height Clearance
Physical clearance above motherboard VRM sections dictates maximum cooler height. When tall CPU air coolers or discrete expansion cards sit directly over power circuitry, vertical clearance becomes strictly limited. Check the height specification before buying individual heatsinks. For tight builds with negligible clearance, low-profile designs like the Easycargo 6x6x3mm Copper Heatsink 10-Pack measure just 0.12 inches tall. Choosing units that exceed your vertical envelope causes direct physical interference with neighboring hardware and prevents proper mounting.
-
Match Individual Component Footprints
Inspect the exact surface dimensions of your voltage regulator modules before picking heatsink dimensions. VRM packages vary across hardware designs, ranging from small power stages to wider MOSFET packages. A heatsink that extends past the package edge risks contacting neighboring traces or components. The Easycargo 12mm Copper VRM Heatsink 6-Pack provides 0.47-inch by 0.47-inch square coverage. Match width and length directly to individual chip tops to ensure full surface contact without spilling over into adjoining motherboard circuitry.
-
Evaluate Thermal Gap Thickness
Cooling VRMs under water blocks or aftermarket coolers often exposes irregular gaps between the components and the cold plate. Pre-cut solid heatsinks cannot bridge these uneven spaces safely. For irregular mounting distances, consider gap-filling putty rather than metal blocks. Thermal Grizzly TG Putty Pro 100g Thermal Putty bridges gaps ranging from 0.2 mm to 3.0 mm. Checking your clearance variance tells you whether fixed-thickness metal heatsinks fit or if non-conductive malleable putty is necessary for proper contact.
-
Choose Sizing Assortment Kits
Motherboards often feature varying VRM controller sizes, chokes, and MOSFETs requiring different footprint profiles. Buying uniform packs forces you to compromise on smaller or larger ICs across the power delivery zone. Assortment kits provide varied sizing profiles in one package. The GeeekPi 102-Piece Aluminum and Copper Heatsink Kit includes 17 component categories split across 92 aluminum and 10 copper pieces. Pick multi-size assortments if your layout contains multiple distinct power chips with differing surface areas and heights.
-
Review Material Thermal Conductivity
Material conductivity ratings determine how rapidly heat conducts away from small power stages. While standard aluminum provides basic dissipation, pure copper provides superior transfer rates for concentrated heat zones. Look for explicit thermal conductivity ratings when tight spaces prevent using taller finned profiles. The Easycargo 100-Piece 15mm Copper Shim Kit specifies 401 W/mK heat transfer across 12 distinct thicknesses. Choose high-conductivity rated copper shims when you need rapid heat conduction across precise, low-profile component gaps.
-
Verify Multi Device Compatibility
Consider whether your cooling needs extend beyond standard desktop motherboard VRMs to other hardware. Some heatsinks list compatibility across varied devices, allowing you to use leftover units on secondary hardware projects. The Easycargo 124-Piece Multi-Size Aluminum and Copper Kit lists compatibility for VRM, GPU, Laptop, RAM, PS5, and Raspberry Pi hardware. Checking the compatible device list ensures the dimensions and mounting tape accommodate the thermal pads and board layouts found on your specific hardware.
Frequently asked questions
What thermal conductivity rating do copper shims provide for VRM cooling?
Copper shims offer high thermal conductivity of up to 401 W/mK for heat transfer away from power delivery chips. Kits like the Easycargo 100-Piece 15mm Copper Shim Kit and Easycargo 20mm Copper Pad Shim Kit explicitly list this 401 W/mK rating. This level of conduction helps quickly transfer heat across narrow component gaps.
What is the lowest-profile heatsink option for tight VRM clearances?
The Easycargo 6x6x3mm Copper Heatsinks provide the lowest profile among individual sinks, measuring just 3 millimeters or 0.12 inches tall. This micro-profile accommodates power delivery stages sitting underneath dense cable runs or low-profile expansion cards. They also include pre-applied thermal adhesive tape for fast attachment directly onto miniature electronic chips.
When should you use thermal putty instead of VRM heatsinks?
You should use thermal putty when bridging irregular gap sizes between power circuitry and an existing cooler or water block. Thermal Grizzly TG Putty Pro accommodates variable clearances between 0.2 mm and 3.0 mm. It provides an electrically non-conductive interface without requiring individual adhesive heatsink modules across uneven VRM heights.
Which adhesive tape is used on pre-taped VRM heatsinks?
Several heatsinks use dedicated thermal interface adhesives like 3M 8810 tape. For example, the Easycargo 12mm Copper VRM Heatsink 6-Pack and the 10mm Copper VRM Heatsink Kit feature pre-applied 3M 8810 adhesive. This tape bonds the copper base directly to individual MOSFET or VRM packages without requiring liquid thermal glue.
What are the benefits of multi-size heatsink kits for VRM projects?
Multi-size assortments give you flexible options when cooling power circuitry with differing component footprints. The GeeekPi 102-Piece Kit features 17 distinct categories across 92 aluminum and 10 copper pieces, while the Easycargo 124-Piece Kit combines aluminum sinks and thin copper shims. Both kits supply pre-applied thermal tape to match mixed component dimensions.
What wide passive heatsink works for elongated VRM rows?
The Awxlumv 60x40x11mm Aluminum Heatsink covers extended rows of power circuitry with its 60 mm by 40 mm footprint. It provides a single continuous aluminum surface with an 11 mm vertical height, keeping overhead clearance manageable. This model includes pre-applied thermal tape to span several aligned power stages at once.
Can VRM heatsinks also cool other computer components?
Yes, many VRM heatsinks and shims list compatibility with additional hardware. Specifications for options like the Easycargo 124-Piece Kit and 15mm Copper Shim Kit note support for GPUs, RAM, laptops, M.2 SSDs, and Raspberry Pi boards. Their small footprints and adhesive backing match varied low-power semiconductor packaging.
